60kW Rated Output 65kWh Portable EV Charger | Maxpower Mobile Charging Device

نام تجاری:	Mckee Charging Cube
شماره مدل:	CLF-DC-65kWH
مقدار تولیدی:	1
قیمت:	Negotiate
جزئیات بسته بندی:	بسته بندی کیس چوبی
شرایط پرداخت:	D/A، D/P، T/T، وسترن یونیون

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

لویانگ، چین

گواهی:

استاندارد رابط:

CCS1 / CCS2 / CHAdeMO / GBT

جریان الکتریسیته:

250A / 600A

ولتاژ ورودی:

327 ولت - 456 ولت متناوب

ولتاژ خروجی:

50 ولت - 1000 ولت

فرکانس ورودی:

45 هرتز - 65 هرتز

سطح ضد آب:

IP55

اوج بهره وری:

≥ 95.5٪

پروتکل شبکه:

OCPP 1.6J

برجسته کردن:

60kW portable EV charger

65kWh mobile charging device

Maxpower EV charger with warranty

توضیحات محصول

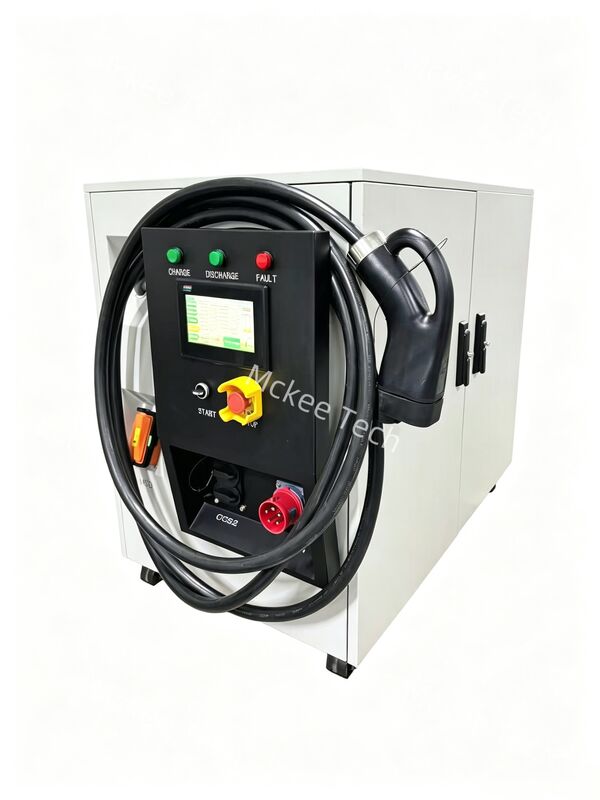

This portable charging device serves as emergency power supply for electric vehicles, catering to temporary power demand of new energy cars. It is compatible with both AC and DC charging modes. Featuring 65kWh standard capacity and 60kW rated output power, it also supports customized upgrade for larger capacity and power specifications.

Electrical Performance

Parameter	Specification
Electric Current	250A / 600A
Input Voltage	327V - 456Vac
Power	Complete machine: 0-2400A; Single circuit: 0-25A; Super-charging: 0-600A
Output Voltage	50V - 1000V
Input Frequency	45Hz - 65Hz
Power Factor	≥ 0.99
Peak Efficiency	≥ 95.5%

Environmental & Protection

Parameter	Specification
Waterproof Level	IP54
Work Temperature	-30°C to 85°C (Derated output when temperature exceeds 50°C)
Operating Humidity	5% - 95% (No frost condensation)
Elevation	≤ 2000m
Material Quality	PC Flame retardant

Functional & Interface

Parameter	Specification
Output Routes	Max 12 (Compatible with 6/8/10 configurations)
Safety Functions	Short circuit protection, Leakage protection, Overcurrent protection, Emergency Stop
Usage Methods	RFID card / Swipe card / GPRS / RS485 / CAN / Ethernet
Line Length	5M / 10M
Network Connection	OCPP 1.6J

Mechanical & Packaging

Parameter	Specification
Main Unit Dimensions	1355 × 995 × 2000 mm (L × W × H)
Terminal Dimensions	325 × 450 × 1430 mm (L × W × H)
Packaging	Wooden Case

FAQ

Q: How long is your delivery time?

For charging posts, it is usually 3-10 days. If there is no stock, the production lead time is determined according to the order quantity. High-power DC charging posts usually need to be customized according to the customer's technical parameters.

Q: How long does it take to customize the prototype?

For charging piles, the prototype time is usually 7 days.
For DC charging post, the prototype time is usually 15 days.
For high power fast charging station, the technical parameters need to be determined before production, and the prototype time is usually 30 days.

Q: How to guarantee the service?

Our products are divided into two categories: household and commercial.
For home chargers, we provide standardized service: 1 year warranty + remote installation and usage guidance + video installation tutorial
For commercial chargers, we not only provide standardized services for charging piles, but also provide payment software docking services for operating companies.

Q: How do you guarantee the quality of your products?

The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are in progress.

Q: How do you guarantee the quality of your products?

The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are in progress.

NOTE:

1- OEM supported.

2- Any requirement please contact us to talk about the details.

3- We will reply you for your inquiry in 24 hours.

4- If you have any questions about the charger, please contact us.

5- The above for reference only, final price decide by the charger KW, please contact us to get the correct quote.
