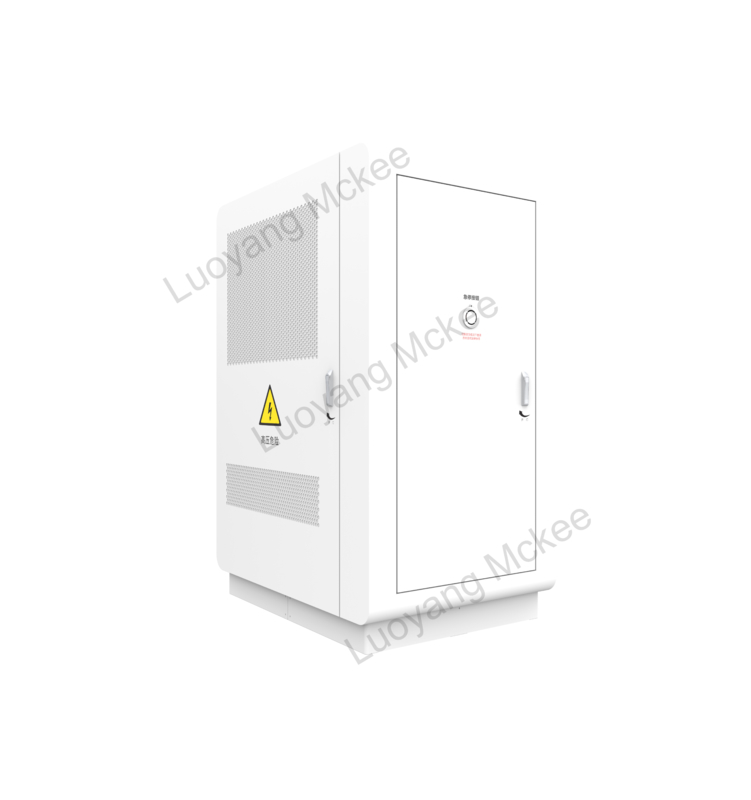

600kW Modular Energy Storage Charging System with Expandable Liquid-Cooled Terminals

نام تجاری:	Mckee Charging Cube
شماره مدل:	CLF-FDC 600KW
مقدار تولیدی:	1
قیمت:	Negotiate
جزئیات بسته بندی:	بسته بندی کیس چوبی
شرایط پرداخت:	L/C، D/A، D/P، T/T، وسترن یونیون

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

لویانگ چین

گواهی:

برجسته کردن:

600kW modular energy storage system

expandable liquid-cooled charging terminals

AC EV charger with energy storage

توضیحات محصول

600kW Modular Energy Storage Charging System with Expandable Liquid-Cooled Terminals

product description:

The 600kW energy storage & charging system features a split-type modular flexible charging stack. Future station expansion only requires adding liquid-cooled terminals for extra charging bays without full replacement of power units. Centralized power supply via a unified power pool cuts redundant transformer setup. Compared with separate high-power chargers, it lowers upfront power distribution costs and line losses, boosting long-term revenue for heavy-truck charging stations.

Detail Information:

Place of Origin:

Luoyang, China

Certification:

CE

Power Level:

480/600/800/960/1440kW

Exportable Routes:

Maximum 16 Channels

Input Voltage:

327-456Vac

Output Voltage Range:

DC50*1000V

Output Current Range:

Whole Machine 0-2400A

Efficiency:

Peak Efficiency ≥95.5%

Power Factor:

≥0.99

Protection Level:

IP55

Highlight: commercial EV charger floor mounted,
outdoor DC charging station 600KW,
group charging station electric

advantage:

The maximum output power of a single gun is 600 kW. Charging for 3 minutes, the endurance is 200km
Use 40 kW Si℃ module. Peak efficiency ≥97%, module allocation pre-granularity is 40 kW. 11 parking spaces are shared
960kW power pool
600A liquid cooling terminal meets 2015+/ChaOji compatible with future charging needs

600kW Modular Energy Storage Charging System with Expandable Liquid-Cooled Terminals 0

600kW Modular Energy Storage Charging System with Expandable Liquid-Cooled Terminals 1

600kW Modular Energy Storage Charging System with Expandable Liquid-Cooled Terminals 2

About McKee

Mckee is a manufacturer focusing on electric car charging stations and related electric car accessories. Committed to sustainable development since 2011, we constantly aim to adopt clean and green technologies, striving to provide safe and green energy services through technological innovation.

We provide complete electric vehicle charging solutions, from innovative energy storage technology to public DC fast charging stations, fast charging stations and portable charging stations for home use. Our infrastructure can meet every type of demand.

Frequently Asked Questions

How long is your delivery time?

For charging posts, it is usually 3-10 days. If there is no stock, the production lead time is determined according to the order quantity. High-power DC charging posts usually need to be customized according to the customer's technical parameters.

How long does it take to customize the prototype?

For charging piles, the prototype time is usually 7 days. For DC charging posts, the prototype time is usually 15 days. For high power fast charging stations, the technical parameters need to be determined before production, and the prototype time is usually 30 days.

How to guarantee the service?

Our products are divided into two categories: household and commercial. For home chargers, we provide standardized service: 1 year warranty + remote installation and usage guidance + video installation tutorial. For commercial chargers, we provide both standardized services and payment software docking services for operating companies.

How do you guarantee the quality of your products?

The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are in progress.

Additional Information: OEM supported. Any requirement please contact us to talk about the details. We will reply to your inquiry within 24 hours. The above for reference only, final price determined by charger KW - please contact us for accurate quote.
